FM Network Stream

Description

Minimal setup guide for FM Network (UDP) Live Stream.

---

Setup fo Sender Scene(Server)

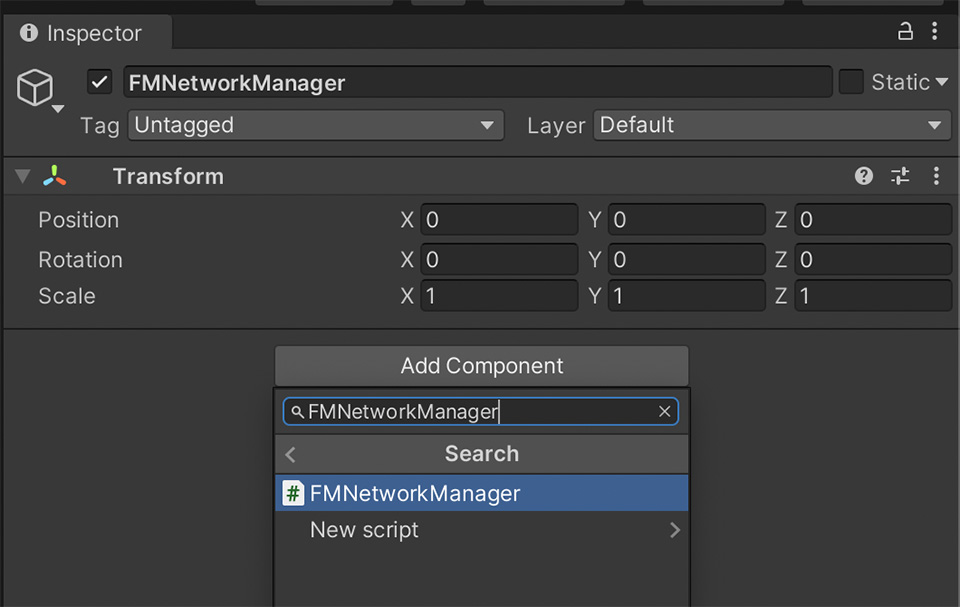

1. Create new Game Object and Add Component FMNetworkManager

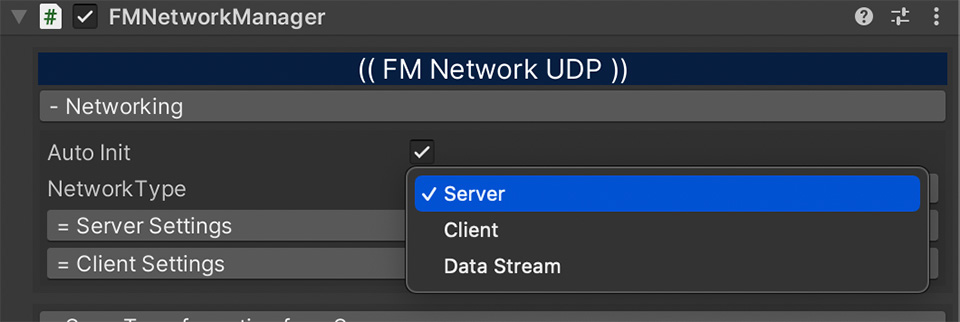

2. Choose NetworkType as Server

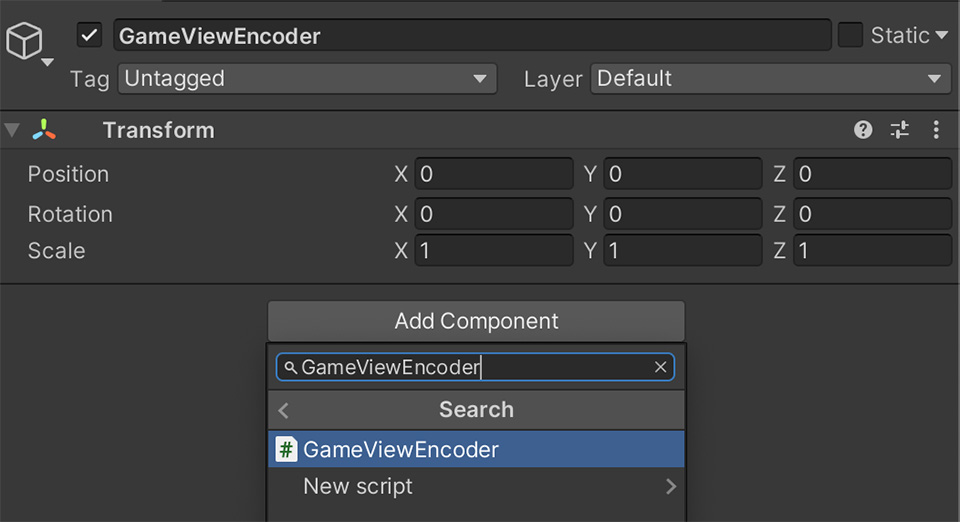

3. Create new Game Object and Add Component GameViewEncoder

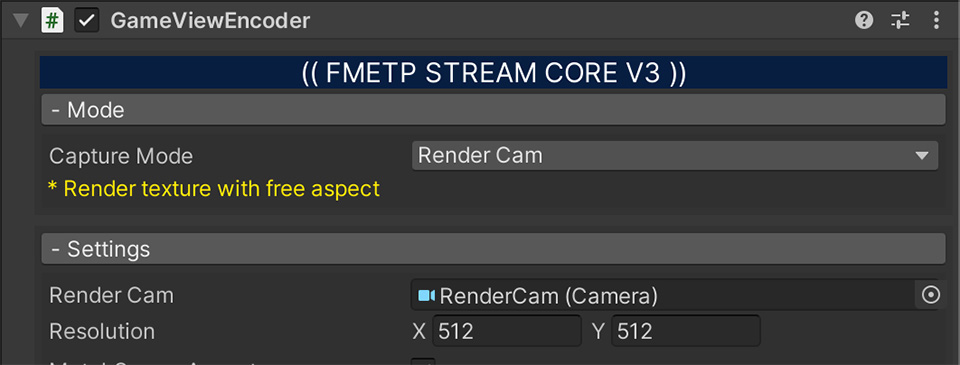

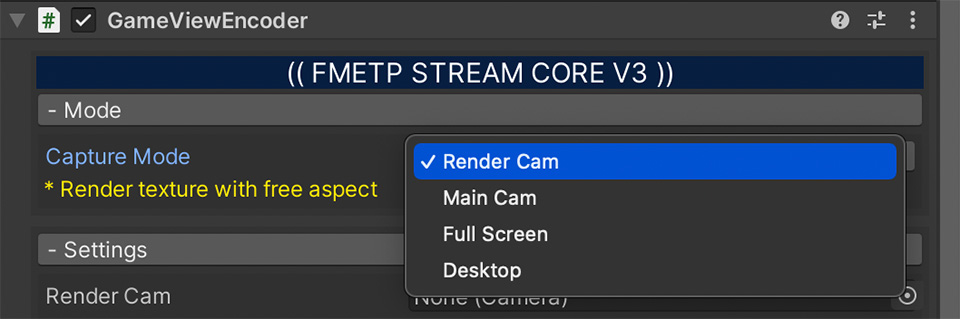

4. Choose Capture Mode as Render Cam

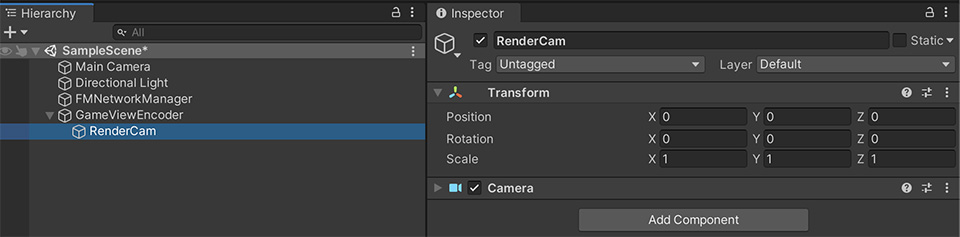

5. Create a Camera Object, and rename as “RenderCam”
6. Assign “RenderCam” into GameViewEncoder Settings->RenderCam

• MainCam mode is recommended for good performance, you may assign “Main Camera” instead adding extra RenderCam
• RenderCam mode is only recommended for older WebGL Build, to prevent any flickering bug on Web Browser.

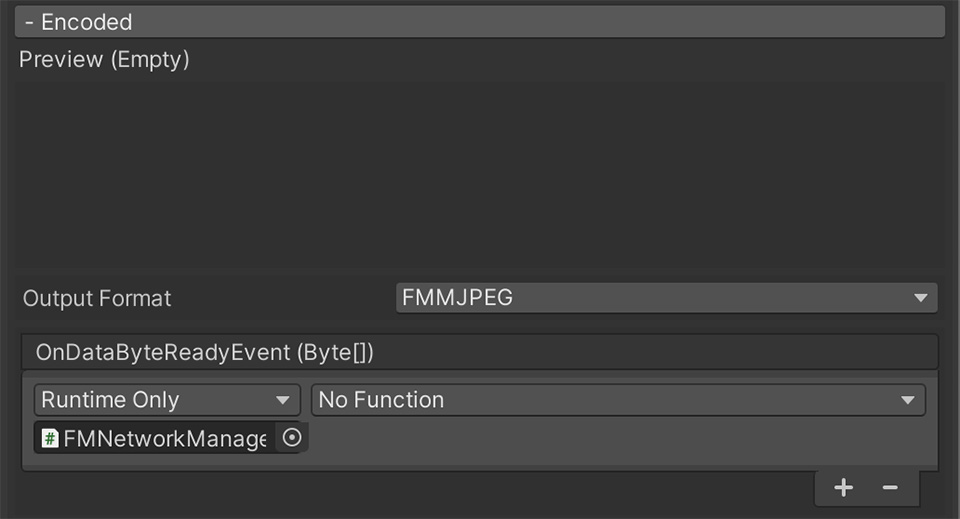

7. Add Event “+”, and assign FMNetworkManager into OnDataByteReadyEvent box

• Output Format FMVPX(VP8) is recommended for compatibility

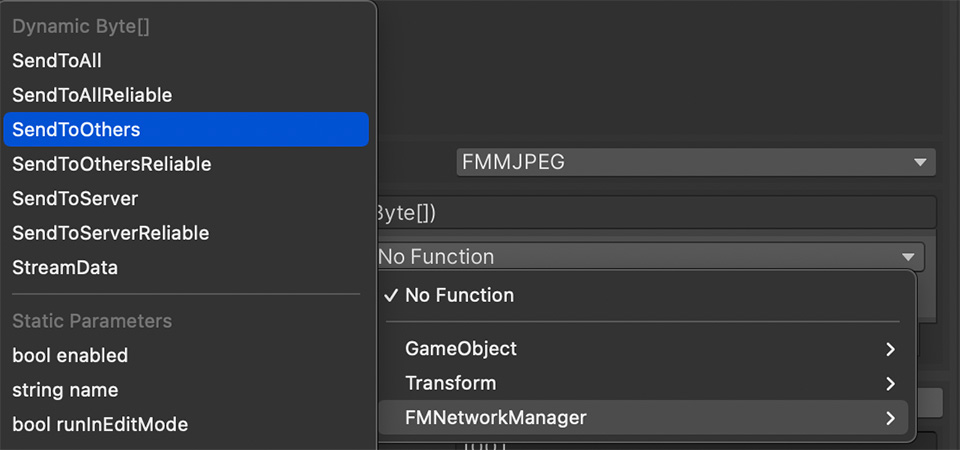

8. Change “No Function” to FMNetworkManger -> SendToOthers(Dynamic Byte[])

---

Setup for Receiver Scene(Client)

1. Create new Game Object and Add Component FMNetworkManager

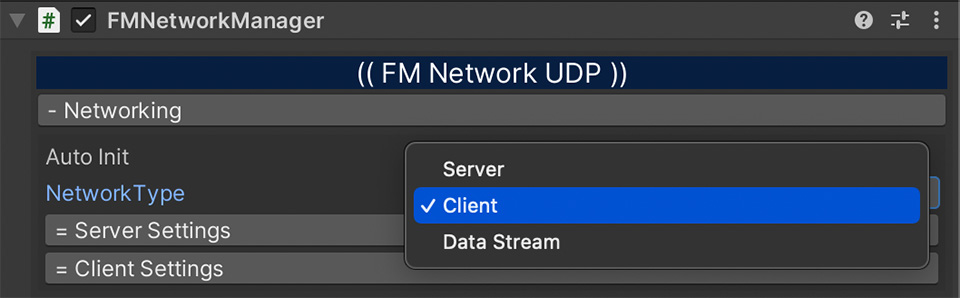

2. Choose NetworkType as Client

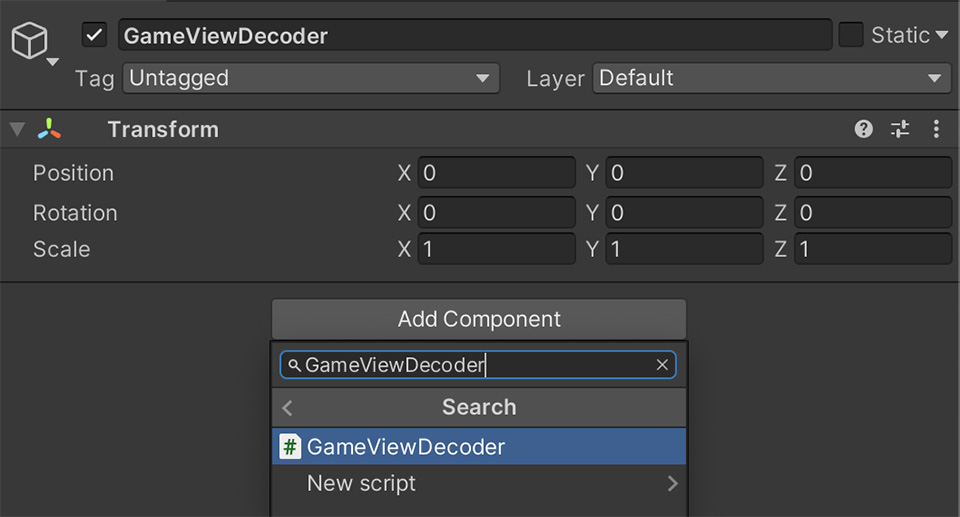

3. Create new Game Object and Add Component GameViewDecoder

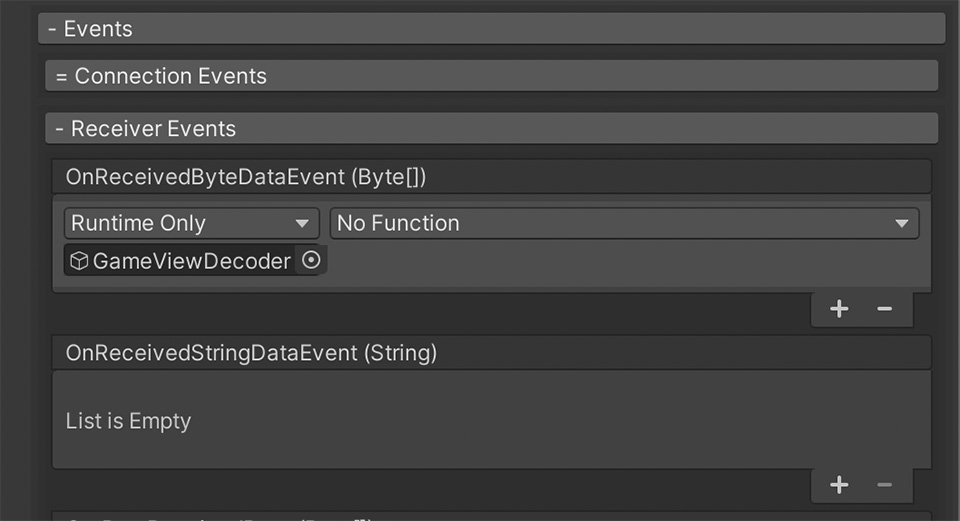

4. Add GameViewDecoder to FMNetworkManager -> OnReceivedByteDataEvent

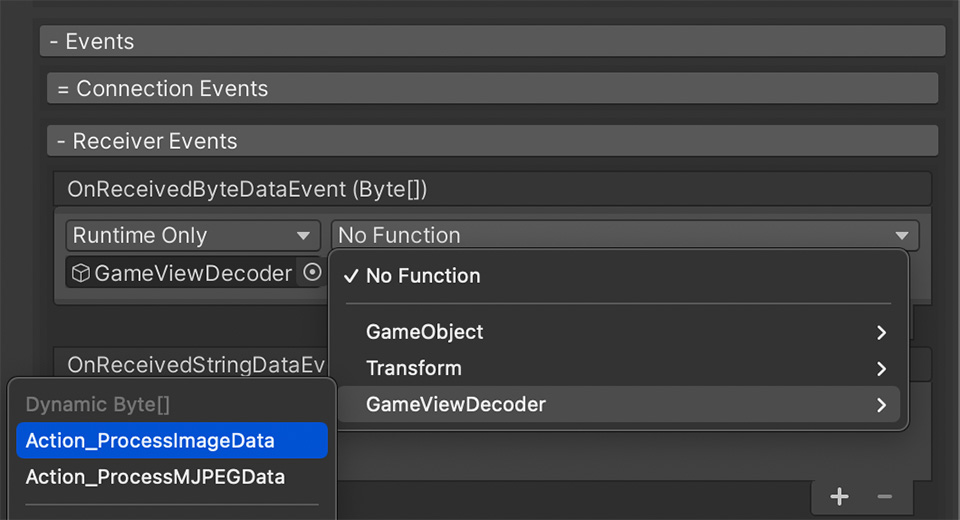

5. Change “No Function” to GameViewDecoder -> Action_ProcessImageData(Dynamic Byte[])
